Trinco Blast Equipment




TRINITY TOOL COMPANY

Leader in Blast Cleaning Since 1951

Metal Finishing Supply is a distributor and supplier of Trinco™ Dry Blast equipment from Trinity Tool Co. Trinity Tool company has been manufacturing dry blast equipment since 1951 and was founded on the philosophy of building the best blast cleaning equipment at the lowest possible price.

Trinco equipment offers quality at reasonable prices with equipment designed with functional simplicity in mind. Their product offerings are suction blast cabinets, pressure driven cabinets, tumble blasters, dolly and track assemblies, production type machines and the ability to custom design to any blast cleaning need. Their equipment offers the ability to clean, remove scale, preparing surfaces, reclaiming and finishing parts!

Trinco Standard Features:

  • Built from 14-gauge steel
  • Heavyweight rubber gloves with neoprene optional
  • Easy change window frame
  • Safety designed foot valve blasting control
  • Tungsten Carbide Nozzle and air jet (suction systems)
  • 8” or 11” arm holes on 40x40 and larger systems and direct pressure units
  • Fluorescent lighting to eliminate shadows
  • Air Pressure regulator and gauge (master models & pressure unit only)
  • Double floor – 1/8” expandex steel plus carbon screen (master models & pressure units only)

They offer many standard designed units in both suction models and Direct Pressure Models. Trinity Tool Catalog Visit their Webpage: http://www.trinco.com

Suction Models:

Master Model 36/BP:

This very popular cabinet is ideal for cleaning small or medium size parts. Includes front flip up top and side door, fluorescent lighting and pressure regulator. Blast gun is rated for 25 CFM at 60 PSI. Includes BP Dust Collector (100 cfm), foot pedal, safety glass window and rubber gloves. Ability to upgrade to 400 CFM DC, Abrasive Separator or Deluxe Model!

Working Cabinet Size: 36”w x 24”d x 23”h

Overall size: 38”w x 25”d x 64”h (400 lb shipping weight)

Front Door: 36”wx13”h Side Doors: 17”w x 16”h

MM 36

Master Model 48/BP:

This very popular cabinet is ideal for cleaning small or medium size parts. Includes front flip up top and two side doors, fluorescent lighting and pressure regulator. Blast gun is rated for 25 CFM at 60 PSI. Includes BP Dust Collector (100 cfm), foot pedal, safety glass window and rubber gloves. Ability to upgrade to 400 CFM DC, Abrasive Separator or Deluxe Model!

Working Cabinet Size: 48”w x 24”d x 23”h

Overall size: 52”w x 25”d x 64”h (500 lb shipping weight)

Front Door: 48”wx13”h Side Doors: 17”w x 16”h

MM 48
With BP Dust Collector 400 CFM PT DC Available Abrasive Separator Available Deluxe Model Available
Model 20-Bench Model Std No No No
Model 20/88ST Std No No No
Model 24 Std No No No
Model 30 Std No No No
Master Model 36 Std Yes 300 cfm std 450/600 avail. Yes
Master Model 48 Std Yes 300 cfm std 450/600 avail. Yes
Master Model 42x24 Split Level Std Yes 300 cfm std 450/600 avail. Yes
Master Model 48x24 Split Level Std Yes 300 cfm std 450/600 avail. Yes
Master Model 48x36 Std Yes 600 cfm Yes
Master Model 40x40 Split Level Std Yes 600 cfm Yes
Master Model 60x24 Split Level Std Yes 600 cfm Yes
Master Model 48x48 Split Level Std Yes 600 cfm Yes
Master Model 60x48 Split Level Std Yes 600 cfm Yes
Master Model 72x48 Split Level Std Yes 600 cfm Yes
Master Model 96x48 Split Level Std Yes 600 cfm Yes

Abrasive Separator includes blow-up filter bag, CFM listed, upgrades available. Deluxe Model includes Abrasive separator, Enclosed Dust Collector, Water Filter & Blow off Gun Split Level units open like a “clam shell” at the floor of the machine. Non-Split level units are quotable upon request.

Options such as turntables, tumble power basket assemblies, upgraded nozzles available.

Direct Pressure Units:

A Trinco™ Direct Pressure Cabinet utilizes an A.S.M.E coded pressure vessel to pressurize the blast media. When the foot pedal is depressed, pressurized air from the air compressor is released into the vessel and forces the media from the vessel through the blast hose and nozzle. Most pressure blast cleaning is done at 40-80 psi. Due to the lower pressures, media breakdown is reduced even through a high volume. Most media is recycled through abrasive separator and spent material is removed through the dust collector. Direct Pressure units are ideal for very tough jobs, where large surfaces must be cleaned quickly and for production blast cleaning requirements. (Typically the upfront cost of a direct pressure machine is 2-3 times that of a suction cabinet counterpart, but the operator will have 3-5 times the production/cleaning rate with pressure!)

Trinco™ has a number of standard direct pressure models with the ability to create non-stock, customized models. Standard units are split level units (open at the center) and include a DP-850 pressure unit, unless otherwise noted. A number of options are available for all pressure units!

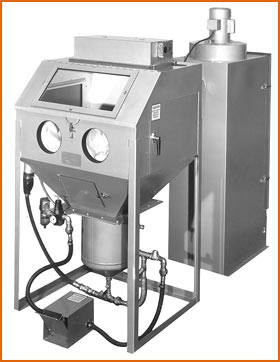

Model 36x30 PC Direct Pressure:

A smaller type shop cabinet with 36”w x 30”d working chamber and pressure pot mounted under the cabinet. Media falls straight down back into the pressure pot while an 800 CFM pull-thru dust collector removes the dust from the unit.

36x30

Other Standard Suction Cabinets:

  • Model 48x36 PC (pot underneath cabinet – 800 PT DC)
  • Model 48x36/DP850 PC
  • Model 40x40 SL-PC
  • Model 48x48 SL-PC
  • Model 60x30 SL-PC
  • Model 60x48 SL-PC
  • Model 72x48 SL-PC
  • Model 96x48 SL-PC

Available options for Direct Pressure Units:

  • Turntable & track
  • Quick depressurization package
  • Upgraded nozzle
  • Automatic power basket
  • Timers
  • Door interlocks

Other Type of Equipment:

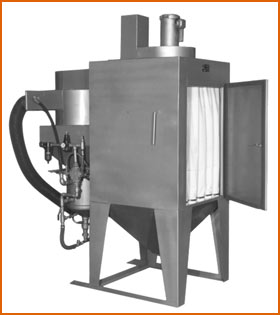

Trinco DP-850 Retro-Fit Unit:

With the Trinco™ DP-850 Retro-Fit unit, you can convert almost any suction type cabinet over to a direct pressure unit. The kit includes a stand mounted A.S.M.E coded pressure pot, 850 CFM Abrasive Separator and 850 CFM Dry Filter Dust Collector. Pressure Regulator, Water Filter, Foot pedal controls, Recovery hose, blast hose, tungsten carbide nozzle and misc. fittings are included to convert your cabinet!

DP850

Tumble Basket Cabinets:

Trinco Tumble blaster are designed for tumble blasting of small parts. Depending on the size, load capacity is between 50-100 lbs. Perforated steel basket is 14”x24” diameter or 24”x24” diameter in the larger unit.

Powered Roller Cabinet:

Designed for Automatic blasting of tubular parts, the operator loads parts on rollers, sets the timer and presses start. Mounted blast nozzle sweeps across top surface as part rotates on its axis.

Oscillator Blast Cabinet:

Designed for Automatic blasting of low profile parts. Operator loads parts on turntable, sets times and starts. Mounted pressure blast nozzles sweep radially over the top of powered rotating turntable blasting the top surface of the parts.

Others:

Steel Shot Blast Cabinets

Pneumatic Cylinder Cabinets

Hi-Cube Blast Cabinets

Multi-Operator Cabinet

Upgrades/Dust Collectors:

  • 400 PT Dust Collector: 400 CFM Dust Collector with 40 sq. ft. of filter media on the clean air side!
  • 800 PT Dust Collector: 800 CFM Dust Collector with 52 sq. ft. of filter media on the clean air side!
  • 900RPC Dust Collector: 900 CFM Reverse Pulse Cleaning Cartridge collector with 472 sq. ft. of media. Also available with 55 gal drum disposal!
  • Abrasive Separator (Suction): Available in 300, 450 or 600 CFM sizes or a custom built size. Available for use with a filter bag or deluxe dust collector.
